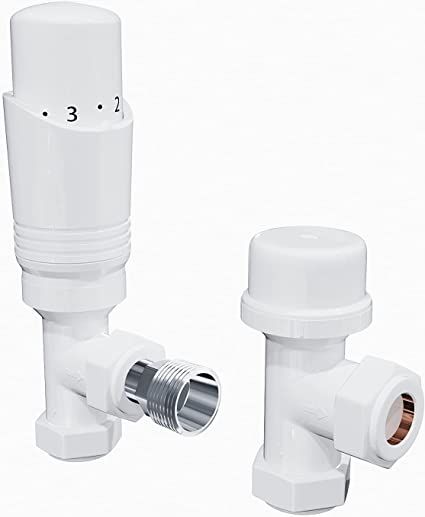

NILE White Angled Thermostatic Radiator Valve Set TRV Radiator Valves
Pickup currently not available
Thermostatic Valve & Lockshield: TRV is connected to the flow; Lock shield valve is connected to the return
Graduated scale from 0 to 5 corresponding to temperature ranges 7°C - 32°C with frost protect setting as well
Quality and Safty:
White plated solid brass
Thermostatic head and reversible bi-directional body
Built in sensor with liquid element
Fully tested 10bar
Max pressure difference 0.8bar
Nominal flow rate 173kgs/h
Max flow temperature 120°C
Can be mounted horizontally or vertically
1/2" BSP standard 15mm compression inlet
Temperature Range:
*: 7°C
1: 11°C - 13°C
2: 15°C - 17°C
3: 19°C - 21°C
4: 23°C - 25°C
5: 27°C - 29°C
Package Includes:
1 x Thermostatic Radiator Valve (TRV)
1 x lock shield valve
